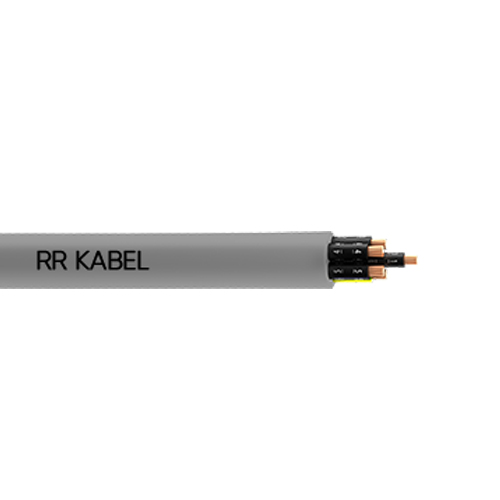

Control Cables (IS 694)

Application

These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.

Ratnaflex -M:PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70oC.
Ratnaflex -M HR:HR PVC insulated & sheathed multicore cales suitable for higher operating temperature of 70oC.
Ratnaflex -M FR:Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70oC.
Ratnaflex -M HRFR:Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85oC with enhanced safety.
Ratnaflex -M FR-LSH:Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.

Technical Data

Approvals : IS 694 marked, FIA/TAC
Conductor : Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance properties
Core Colours:All black colour cores with continuous white numbering, gn-yl core on outer most layer for earth if applicable
Standard Cable Colour :Black (RAL 9005) & Grey (RAL 7001)
Voltage : Up to and including 1100V
Packing : Standard packing of 100 mtr. in coils. Longer length available on requests
